Grouping Points

Grouping elements allows you to generate images from a group of elements (points, lines, surfaces, bodies).

This capability is only available if you installed the ELFINI Structural Analysis product.



This task shows how to group points and how to generate images from this group.



You can use the sample49.CATAnalysis document from the samples directory for this task.

Before You Begin
Go to View -> Render Style -> Customize View and make sure the Shading, Outlines and Materials options are active in the Custom View Modes dialog box.



1. Click the Point Group icon
The Point Group dialog box appears.

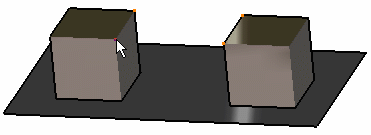

2. Select in sequence the points you want to group.

The Point Group dialog box is updated.

3.  Click OK in the Point Group dialog box.
A Point Group.1 object appears in the specification tree but it is not updated.

4. Update the Point Group. For this, right-click the Point Group.1 object in the specification tree and select the Update Group option.
The symbol  disappears in the specification tree.

You can now visualize Deformation, Von Mises Stresses, Displacements, Principal Stresses and Precisions images, either for all the geometry or only for the selected points. The scenario is the same for the five images.
In this particular case, you will visualize the Von Mises Stresses image:

5. Activate the Von Mises Stress image.
For this, right-click the Von Mises Stress (nodal value) object in the specification tree and select the Activate/Deactivate option.

6. Double-click the Von Mises Stress (nodal value) object in the specification tree.
The Image Edition dialog box appears.

7. Click the Point Group.1 object in the Selections tab.
You will see the result only around the selected points.

For more details about images, see Results Visualization (Image Creation, Generate Images and Editing Images).



You can manually edit or delete a group. For this, right-click the Group object in the specification tree and select the desired option in the contextual menu.
