Creating Radius Curvature Dimensions
 |
This task will show you
how to create and modify a radius curvature dimension. A radius curvature
dimension lets you know the curvature radius at a given point on a curve (spline,
ellipse, etc.).
|
 |

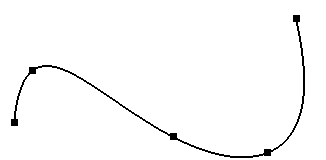

Create a spline.
|
 |
1. Select the Dimension
icon
from the Dimensioning toolbar.
|

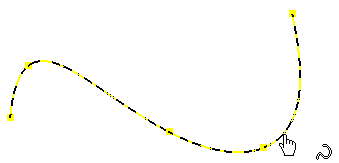

| 2. Move
the cursor over the spline. You can notice that the cursor changes to
indicate that you are going to create a dimension on a spline.
|
|

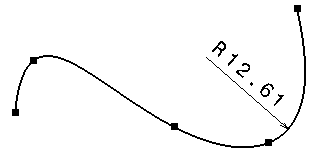

| 3. On the
spline, click the point where you want to create the radius curvature
dimension. A preview of the radius curvature dimension is displayed.
4. Click to validate the dimension creation. |
|
|
|
|

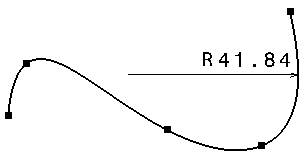

| 5. Move the dimension over the spline to modify the dimension. | |
|
|
|
|
|
