Introducing the Default Check Report
The default check report presents the Expert and Advisor checks that failed.
 |

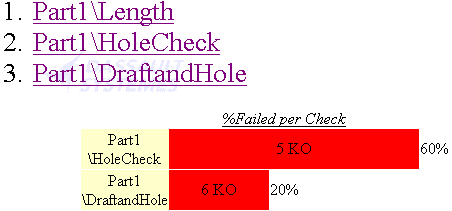

This panel lists the checks that failed and presents a percentage of the failed items per Expert Check. |
Advisor Checks report |
|
 |

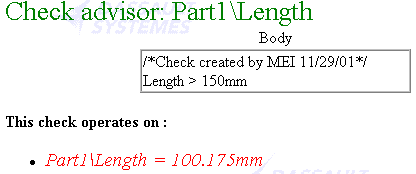

The Advisor checks panel
lists the Advisor checks that failed and shows the following elements: - the body of the check (Length>150mm here) - the item(s) on which the check operates (here, the Length formula). |
Expert Checks report |
|
 |

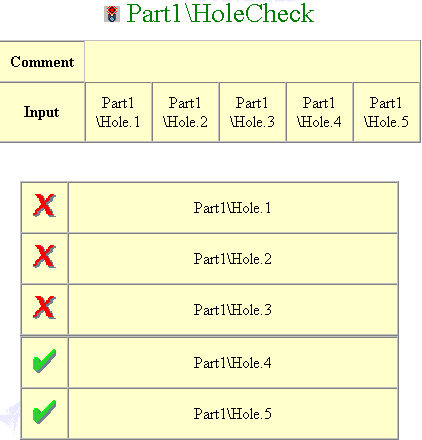

The Advisor checks panel
lists the Expert checks that failed and shows the following elements: - the Input items checked by the check operation. - the item(s) that failed (here Hole.1, Hole.2, and Hole.3). |
 |
Remember that this report should not be used to generate macros or other files. It is provided as information only. |
