Example 8:

A boiler operates under the following conditions:

Steam production: D=70 kg/s
Steam pressure: p1=120 b
Steam temperature: ts=350 ° C
Feed water temperature: ta=200 ° C
Preheated air temperature: tL=250 ° C

a) Estimate a boiler ballance if given are the excess air l= 1,25 and boiler efficiency coefficient hk = 0,80. Fuel is given: composition, c=0.195; h=0.017; s=0.008; o=0,10; n=0,004; w=0,470; a= 0,198 and lower calorific value Hd=5930 kJ/kg. Furnace efficiency ishF=0,94;hg=0,98 and insulation hz=0,98.

b) What happens if the air preheater is evenly split into two parts positioning a water heater between them.

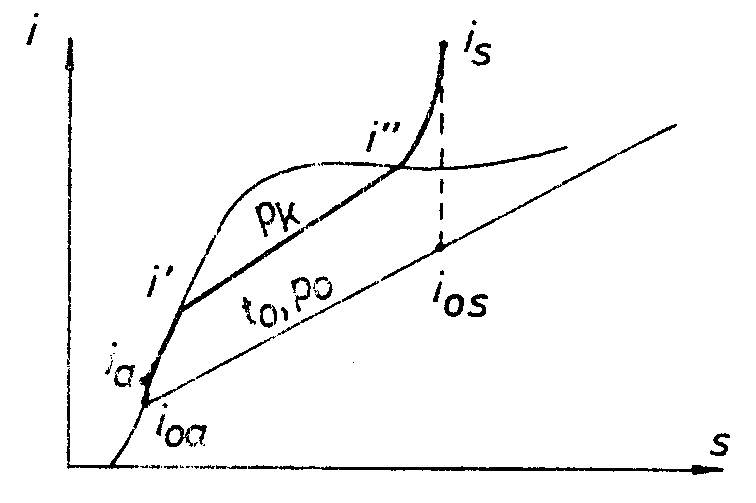

c) Estimate a reversibility coefficient of the boiler.

Solution:

a) Refer Example 4 for more details and plot H-t diagram:



Minimal quantity of air:

Air necessary for the combustion:
VL =l VLmin = 2,317 (Nm3 /kg)
Minimal quantity of combustion products:
VRWmin = 1,867c+11,2h+ 0,7s+1,244w+0,79 V Lmin + 0,8n = 2, 617 (Nm3 /kg)
Real quantity of combustion products for a given l:
VRW = VRWmin+ (l -1) VLmin =3,081(Nm3 /kg)
Heat Ballance

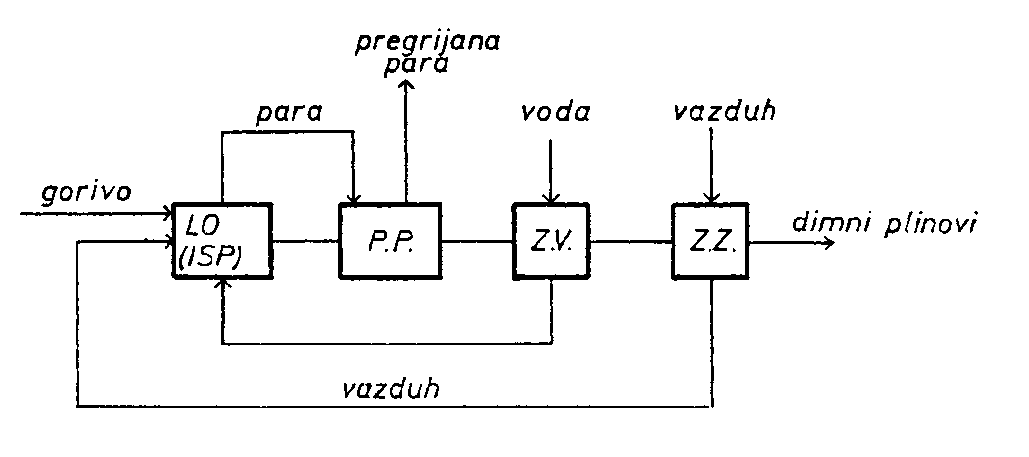

The boiler is given on the diagram:

LO - Furnace and evaporator
PP - Superheater
ZV - Water heater
ZZ - Air preheater

Heat exchanged

Heat exchanged in the water heater:

QE = D (i ’-ia ) = 70 (1490 – 898) = 41400 (kW)
Heat exchanged in the evaporator:
Qi = D (i” – i’) = 70 (2685 – 1490) = 83650 (kW)
Heat exchanged in the the superheater:
Qs = D (is - i”) = 70 (3420 – 2685) = 51450 (kW)
Quantity of fuel needed for combustion:

Heat exchanged in the in the air preheater:
QZ = hz B(iL –il)VL
iL - specific enthalpy of the preheated air
il - specific enthalpy of the cold air

for tL= 250° C, iL= 335 (kJ/Nm3)  and for tl = 20 ° C , il = 26 (kJ/Nm3), therefore:

Qz = 26640 (kW)
Temperatura di stribution in the boiler:

Theoretical temperature in the furnace is obtained from the HI-t diagram based on the theoretical enthalpy HFo and excess of air:

IFo =Hd hF + VL iL = 6000 ( kJ/kg) , l = l,25
and from H-t dijagrama it is:
t Fo = 1280 ° C.
Temperature after the furnace (evaporator) is obtained from the corresponding enthalpy when a heat exchanged in the evaporator is subtracted from the theoretical enthalpy:
This enthalpy and excess of airl = 1,25 give from H-t diagram:
tF2=800 ° C.
Enthalpy of combustion products after the superheater is:
and a corresponding temperature:
tF3 = 500° C.
Enthalpy of the combustion products after the water heater is:
for which accompanied with excess of air the temerature from H-t diagram is:
tF4 = 300 ° C
Finaly, enthalpy at end of the boiler is:
Temperature of the combustion products at the boiler end is obtained from the H-t diagram as:
tF5 = 160 ° C.

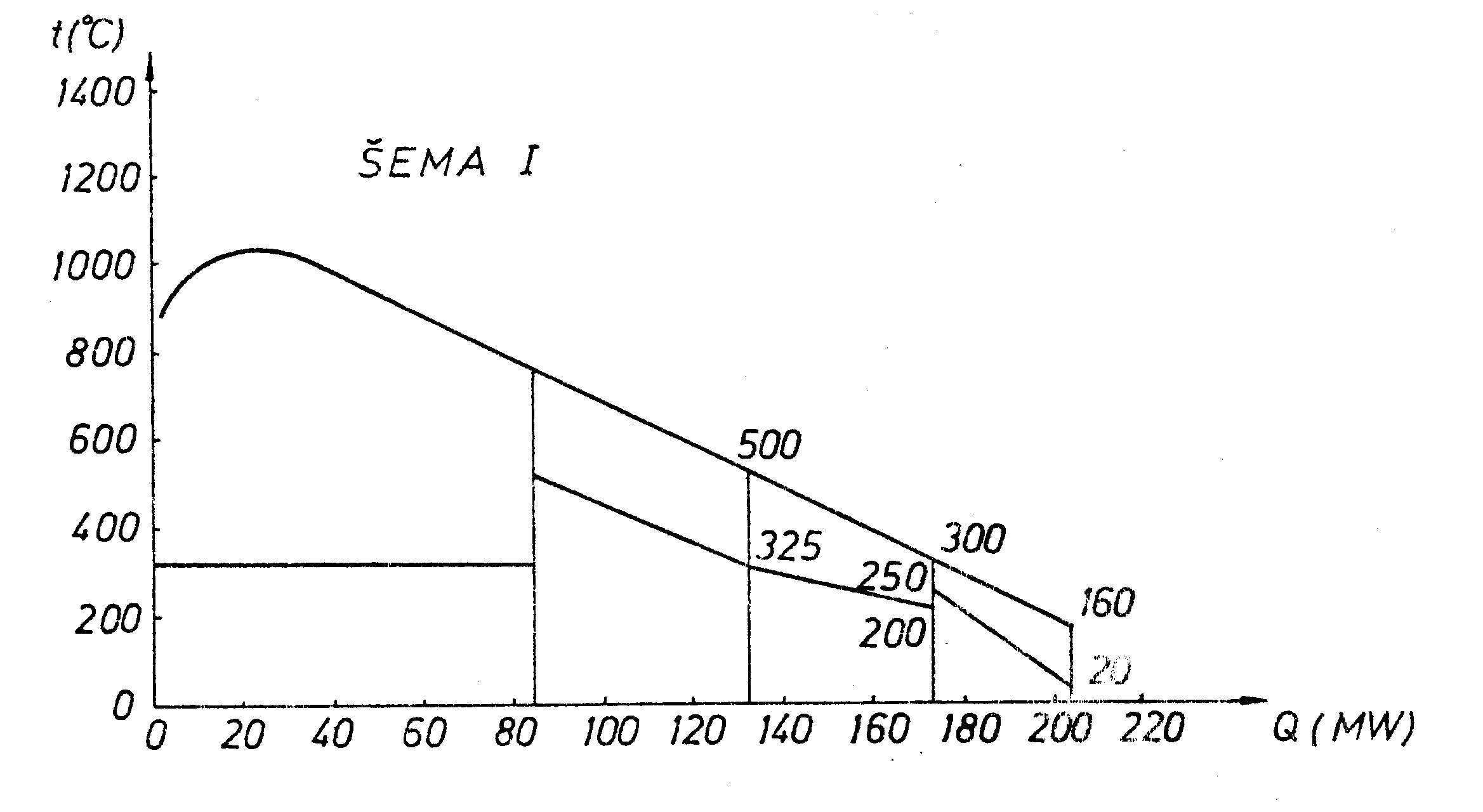

Lenz t-Q diagram for this boiler is shown in the figure:

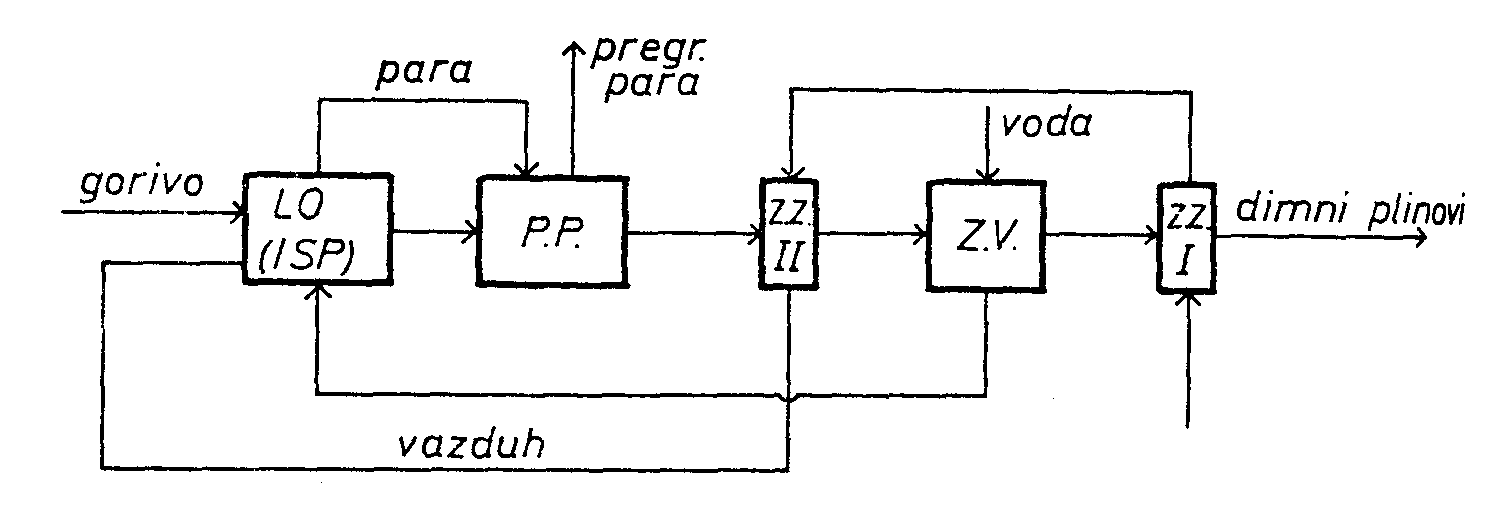

b ) If at the air preheter is split into two equal parts and a water heater is placed between them, the boiler becomes:

Heat exchanged in each part of the air preheater:



LO - Furnace and evaporator
PP - Superheater
ZV - Water heater
ZZ - Air preheater

Temperature of combustion products at the end of the second preheater stage is obtained for the H-t diagram:


TF3 = 466 oC.


Enthalpy of combustion products at the water heater exit is:

and a correspoonding temperature:
t F5=215 oC
Enthalpy at the boiler exit is:
which is identical to the previous case which is the same for the exit temperatures.

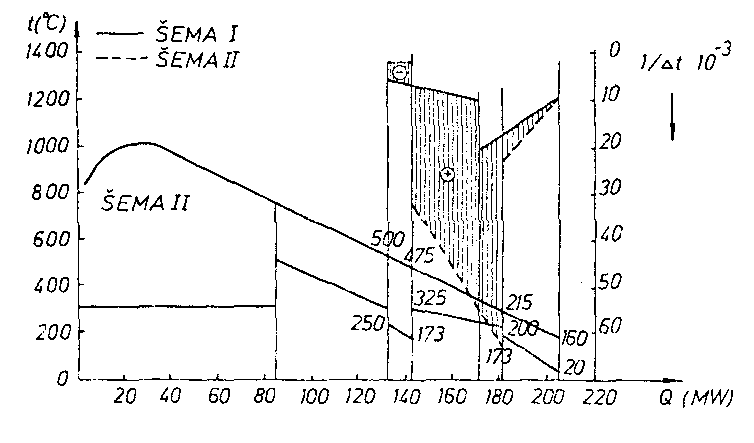

Lenz diagram is for this case:


To compare two boilers a distribution of the reciprocals of temperature differences is plotted representing the values of  kA. For the same koefficient of heat transfer, the boiler I requires a smaller heating surface than boiler II.
