Editing a Component

This task shows you how to edit the component causing the problem.
1.  Double-click the brown cylinder to access the Part Design workbench.
2.  Double-click the cylinder again to edit it. The Pad definition dialog box is displayed.
3.  Enter 20mm to reduce the pad length and click OK.
4.

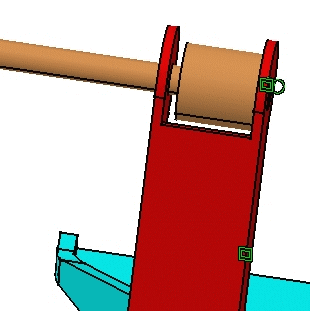

The cylinder is updated and now looks like this:
