Replicating Text and Attribute

This task shows you how to replicate text as well as the corresponding text attribute.
aprereq.gif (1223 bytes) Open the GenDrafting_part_02.CATPart document. Open the GenDrafting_part_03.CATDrawing document.

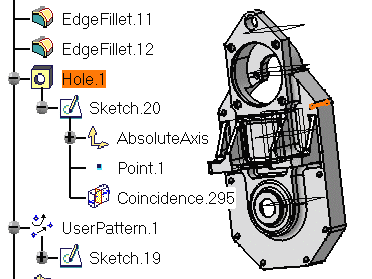

ascenari.gif (1364 bytes) 1. Click the hole to be assigned text on the part. For example, on GenDrafting_part_02.CATPart, select Hole.1.


2. Click the CATDrawing (GenDrafting_part_03.CATDrawing) and click the Replicate icon  from the Annotations toolbar (Texts subtoolbar).



  3. Select the text to be replicated.
The new replicated text automatically appears under the cursor.

4. Click where you want the new text to be positioned.

The hole diameter automatically corresponds to the diameter of Hole1 you selected on the part.


  5. If needed, add a text leader to the new text.
