Editing Images
 |
In this task, you will learn how to edit raster images (*.bmp, *.jpg, *.tif, etc.) inserted in a drawing, or how to view information regarding vector images (*.cgm. *.gl, *.gl2).
|
 |
Insert a raster and a vector image in your drawing. Editing raster images |
 |

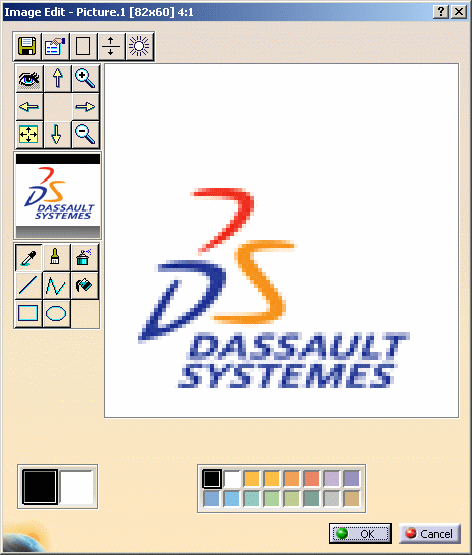

1. Double-click on the raster image. The Image Editor dialog box is displayed. |
|
|
| 2. Edit the image as
wanted. For more information on how to edit images, refer to Editing
Images in the Album in the Infrastructure User's Guide. 3. When you are done, click OK. The image is updated in the drawing.
|
|
Viewing information about vector images |
|

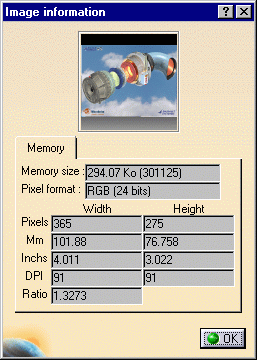

| 4. Double-click on the vector image. The Image information dialog box is displayed. | |
 |
|
| 5. When you are done reviewing the image-related information, click OK. | |
|
