Restoring a Surface

In this task you will learn how to restore the limits of a surface when it has been split using the Break  icon (see Splitting Geometry).

Open the Untrim1.CATPart document.

  1. Click the Untrim icon in the Join-Healing Modification toolbar.

The Untrim dialog box is displayed.

  1. Select the surface which limits should be restored.

The dialog box is updated accordingly.

  1. Click OK in the dialog box.

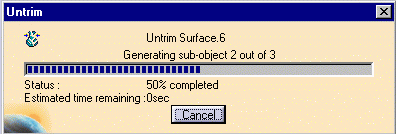

A progression bar is displayed, while the surface is restored.
It automatically disappears once the operation is complete (progression at 100%).

The initial surface is automatically restored.
If the surface has been trimmed several times, it is the initial surface which is restored. To partially untrim the surface, you need to use the Undo command right after the trim.
