Measuring Characteristic Scales

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

# Script to measure surface parameter at characteristic scales.
version(1.0);

# Change the directory below to correspond to your file location.
baseDir = "c:/Program Files/LandSerf/data/landscriptExamples/";

# Change the three values below to define the parameter to explore and the
# scale range over which that parameter is to be measured.
param = "planc";
maxWinSize = 35;
minWinSize = 3;

# Open the dem to analyse and create the rasters to store parameter and scale.
dem = open(baseDir & "dem.srf");
scaleMax = new(dem);
scaleMax = minWinSize;
maxParamSurf = surfparam(dem,param,minWinSize,1.0);
winSize = minWinSize+2;
maxParam = 0;

# Loop through each window size comparing parameter with previous extreme values.
while (winSize <= maxWinSize);
{
    echo("Calculating "&param&" using "&winSize&"x"&winSize&" window.");
    paramSurf = surfparam(dem_, param, winSize, 1.0);
    scaleMax = ifelse(abs(paramSurf) > abs(maxParamSurf), winSize, scaleMax);
    maxParamSurf=ifelse(abs(paramSurf) > abs(maxParamSurf), paramSurf, maxParamSurf);
    winSize = winSize + 2;
}

# Add metadata to the two new rasters.
colouredit(scaleMax,"rules",minWinSize&" 255 255 255, "& maxWinSize&" 0 0 0");

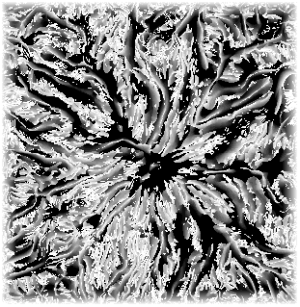

edit(scaleMax,"title",param&" characteristic scale");
edit(scaleMax,"notes","Window size at which "&param&" values are most extreme.");

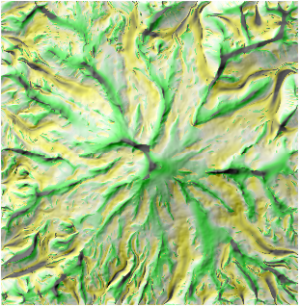

edit(maxParamSurf,"title","Extreme "&param);
edit(maxParamSurf,"notes",param&" calculated with window sizes from "&
                          minWinSize&" to "&maxWinSize&". Contains the largest "&
                          "absolute value of the parameter over the range of scales.");

# Save the two new rasters
save(maxParamSurf,baseDir&"max"&param&".srf");
save(scaleMax,baseDir&"charScale"&param&".srf");
