Chapter 3. Manipulating Vector Maps

By the end of this chapter you will be able to:

3.1 The structure of a vector map

In contrast with raster maps, vector maps are used to represent collections discrete spatial objects with known boundaries. Those objects may be points in space, lines, or areas defined by linear boundaries. A vector map may contain any number of these objects that may be separate from each other, joined, or overlapping.

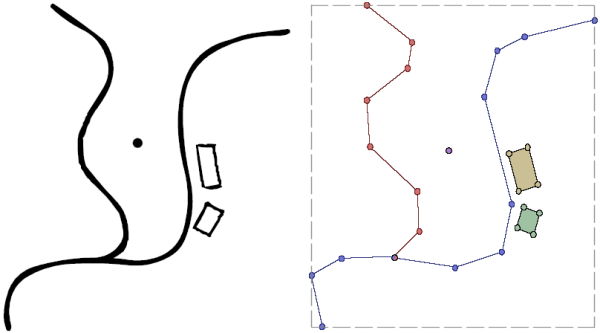

Simple point, line and area features and their vector map representation Simple point, line and area features and their vector map representation.

An individual vector object (such as the red line, blue line, yellow or green rectangle or point above) is represented by the class GISVector. This stores the geometry of the object as a series of (x,y) coordinate pairs. Implicit in this model is that lines and area boundaries are defined by joining consecutive pairs with straight line segments. A GISVector also inherits SpatialObject just as the RasterMap class does. It therefore has methods for defining its bounds, performing simple spatial comparisons, and manipulating its attribute(s). The VectorMap class simply assembles a collection of the GISVectors into a single object that itself has bounds and other metadata attached to it.

3.2 Creating a simple vector map

Creating a vector map is a simple process and just requires calling one of VectorMap's constructors. Like the RasterMap class, you can define the bounds of the object at the point of creation, copy the contents of an existing spatial object, or simply create an empty vector map. Unlike rasters, it is more common for vector maps to grow and shrink as objects are added and removed, so it is quite usual initially to create an empty vector map object:

VectorMap myVectorMap = new VectorMap();

The geometry of an individual object within a vector map is stored in a GISVector object. The object also stores its type - one of GISVector.POINT, GISVector.LINE or GISVector.AREA, as well as its attribute value. These can all be set in GISVector's constructor, or added later using an appropriate method.

The class below shows how some simple vector objects may be created and added to a vector map which is then saved to disk.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56

import jwo.landserf.structure.*;   // For spatial objects.
import jwo.landserf.process.io.*;  // For file handling.

// **********************************************************
/** Creates a simple vector map containing some GISVectors.
  * Demonstrates how vector maps can be created and written.
  * @author Jo Wood
  * @version 1.1, 16th October, 2007
  */
// **********************************************************

public class SimpleVectorMap
{
    //------------------ Starter Method -----------------

    public static void main(String[] args)
    {
        new SimpleVectorMap();
    }

    //------------------- Constructor -------------------

    public SimpleVectorMap()
    {
        // Create an empty vector map, then place some GISVectors within it.
        VectorMap vectorMap = new VectorMap();

        float riverX[] = {2,1,4,7,10,12,11};
        float riverY[] = {2,4,5,3, 4, 7,11};

        GISVector road = new GISVector(riverX,riverY,SpatialModel.LINE,10);
        vectorMap.add(road);

        float buildingX[] = {6,10,11,10,9,7};
        float buildingY[] = {8,10, 7, 5,7,6};

        GISVector building = new GISVector(buildingX,buildingY,SpatialModel.AREA,20);
        vectorMap.add(building);

        GISVector pump = new GISVector(8,5,30);
        vectorMap.add(pump);

        // Add some simple metadata.
        Header header = new Header("Simple vector map");
        header.setNotes("Simple vector map containing a river, building and pump location.");
        vectorMap.setHeader(header);

        // Find range of values and create a random colour table.
        float min = vectorMap.getMinAttribute();
        float max = vectorMap.getMaxAttribute();
        vectorMap.setColourTable(ColourTable.getPresetColourTable(ColourTable.RANDOM,min,max));

        // Write new vector map to file.
        LandSerfIO.write(vectorMap,"simple.vec");
    }
}

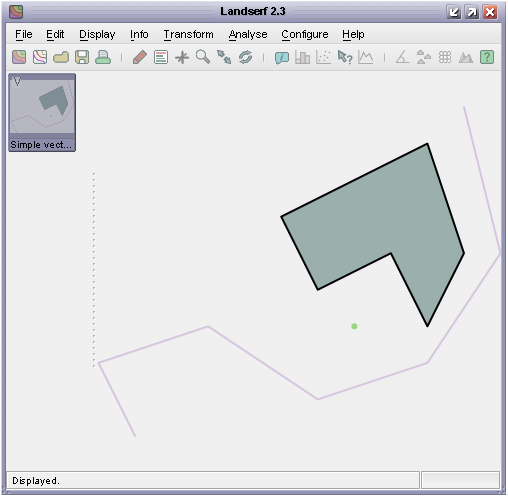

Note the similarity with the way in which raster map metadata are added and saved to disk. The vector map that is created as a result of this class is shown below.

VectorMap output from the SimpleVectorMap class VectorMap output from the SimpleVectorMap class.

3.3 Manipulating Vector Maps

Vector maps can be read much as raster maps using the static method LandSerfIO.readVector(fileName). Altering the metadata associated with a vector map is identical to that of a raster. To manipulate an individual GISVector within a vector map, the set of GISVectors contained can be iteratively extracted using the method getGISVectors(). This method (slightly unfortunately for naming purposes) returns a Java Vector of GISVectors. To process each object in turn, it would be normal to create an iterator:

 Iterator i = myVectorMap.getGISVectors().iterator();

 while (i.hasNext())
 {
     GISVector gisVect = (GISVector)i.next();

     // Do something with each GISVector here.
 }

Note that LandSerf 2.3 does not use generics to organise collections, so Java 1.5 'for-each' loops with generics cannot be used. Future releases of LandSerf will require Java 1.5 or above and will make use of generics for all collections.

Depending on what you wish to do, it is sometime possible to avoid manipulating GISVector objects directly by calling appropriate methods from the VectorMap object. The example below shows how two vector maps can be combined with simple clone() and add() methods.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58

import jwo.landserf.structure.*;   // For spatial object class.
import jwo.landserf.process.io.*;  // For file handling.

// **********************************************************
/** Combines two vector maps by overlaying one on the other
  * and creating new objects from their union.
  * Demonstrates how the GISVector maps can be manipulated.
  * @author Jo Wood
  * @version 1.2, 16th October, 2007
  */
// **********************************************************

public class CombineVectors
{
    //------------------ Starter Method -----------------

    public static void main(String[] args)
    {
        new CombineVectors();
    }

    //------------------- Constructor -------------------

    public CombineVectors()
    {
        // Open an existing vector map.
        VectorMap vectorMap1 = LandSerfIO.readVector("simple.vec");

        // Create a simple vector map to overlay over the first one.
        VectorMap vectorMap2 = new VectorMap();

        float triangleX[] = {6,11,2};
        float triangleY[] = {12,8,3};

        GISVector triangle = new GISVector(triangleX,triangleY,SpatialModel.AREA,30);
        vectorMap2.add(triangle);

        // Add some simple metadata.
        Header header = new Header("Triangular vector map");
        header.setNotes("Simple vector map containing a triangular GISVector.");
        vectorMap2.setHeader(header);

        // Clone the first vector map and add the second to it.
        VectorMap vectorMap3 = (VectorMap)vectorMap1.clone();
        vectorMap3.add(vectorMap2);

        vectorMap3.getHeader().setTitle("Combined vector map");
        vectorMap3.getHeader().setNotes("Union of "+vectorMap1.getHeader().getTitle()+
                                        " and "+vectorMap2.getHeader().getTitle());

        float min = vectorMap3.getMinAttribute();
        float max = vectorMap3.getMaxAttribute();
        vectorMap3.setColourTable(ColourTable.getPresetColourTable(ColourTable.RANDOM,min,max));

        // Write new vector map to file.
        LandSerfIO.write(vectorMap3,"overlay.vec");
    }
}

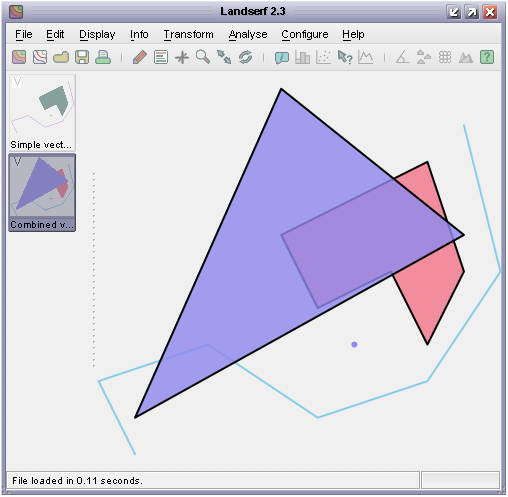

The output from this class is shown in LandSerf below:

VectorMap output from the CombineVectors class VectorMap output from the CombineVectors class.

3.4 Exercises

  1. Write a class that reads in a vector map and separates the map into 'layers' of vector maps, each contining objects with the same attribute. To do this, you will need to iterate through each GISVector contained within the input map, identify its attribute, and then create a new vector map or add it to an existing one.

  2. Modify the CombineVectors class shown above so that it uses the existing colour tables of the combined vector maps (rather than creating a random one as above). You will have to consider what to do if the two vector maps have different colours assigned to the same attribute value.
