Interrupting Extension Lines

	This task will show you how to interrupt manually one or more extension lines of one or more dimensions, either using the contextual menu or the `Insert` menu bar option.
	Open the Interruption_ExtLine01.CATDrawing document.

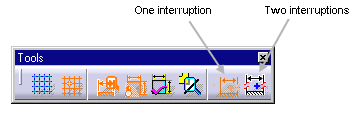

	Use the contextual menu or the toolbar: 1. Right-click a dimension and select the `Object -> Create Interruption` option from the contextual menu. or select a dimension and click on the Create Interruption icon . 2. Choose in the Tools toolbar how many interruptions you want to create 3. Indicate the first point defining the interruption to be created. 4. Indicate the second point defining the interruption to be created.
	If you have chosen one interruption in the Tools toolbar, the interruption is automatically created on the closest extension line.

	Open the Interruption_ExtLine02.CATDrawing document.
	Use the Insert menu bar option: 1. Select one or more dimensions. 2. Select the `Insert -> Dimensioning -> Dimensions -> Extension Line Interruptions -> Create Interruption` option from the menu bar. 3. Choose in the Tools toolbar how many interruptions you want to create 4. Indicate the first point defining the interruption to be created. 5. Indicate the second point defining the interruption to be created. The interruption (s) is/are automatically created on every extension line of the selected dimension(s).

	You can remove the interruption you created by selecting one dimension, the `Remove Interruption` option and then the extension line not to be interrupted any more. Interruption is removed on the extension line nearest the selection point.
	You can also remove all the interruptions applied to one or more dimensions. For this, (multi-)select the dimension(s) and then the `Remove All Interruptions` option. Interruptions are removed on all the extension lines lines of the selected dimension(s).
	If you move the dimension, the interruption will remain as you created it. If you modify either the overrun and / or the blanking, the interruption also remains the same.
	You can apply height interruptions maximum to an extension line.
