Creating a Pocket

In this task, you will learn a method to create a pocket using the profile you have just created.
1.  Select the circle you have just sketched, if it is not already selected.
2.  Click the Pocket icon I_PocketP2.gif (230 bytes) .

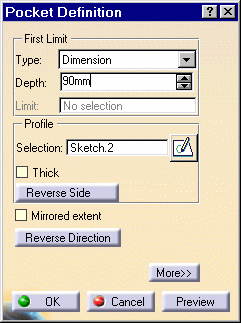

The Pocket Definition dialog box is displayed and the application previews a pocket with default parameters.

3.  Set the Up to last option to define the limit of your pocket.

The application will limit the pocket onto the last possible face, that is the pad bottom.

4.  Click OK.

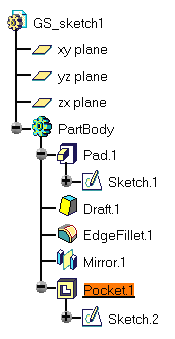

This is your pocket:

For more about pockets, please refer to Pocket.
